A typical stator and coil assembly is shown in Figs. 6.1, 6.2, and 6.3. The stator cores discussed in Chap. 3 are wound with magnet wire in order to produce the magnetomotive force (mmf) that produces the torque.

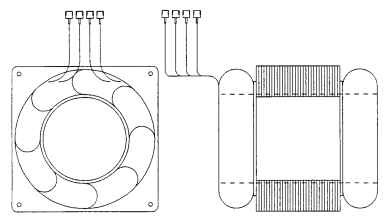

FIGURE 6.1 Stator and coil assembly diagram.
